Caterpillar has a well proven history in the construction equipment industry and has been producing the highest quality machines for 90 years, making progress possible and driving positive and sustainable change on every continent. For 30 years Caterpillar has produced the British built backhoe loader. From the A Series to this new F2 Series we have done our best to produce a machine that is designed with the operator in mind, providing reliability, power and a quality operator environment. We have combined 30 years of passion, expertise and experience to create the latest Backhoe Loader offering from Caterpillar, the F2.

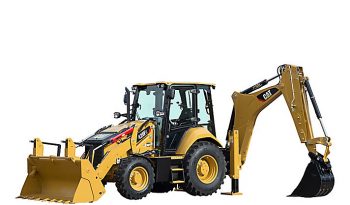

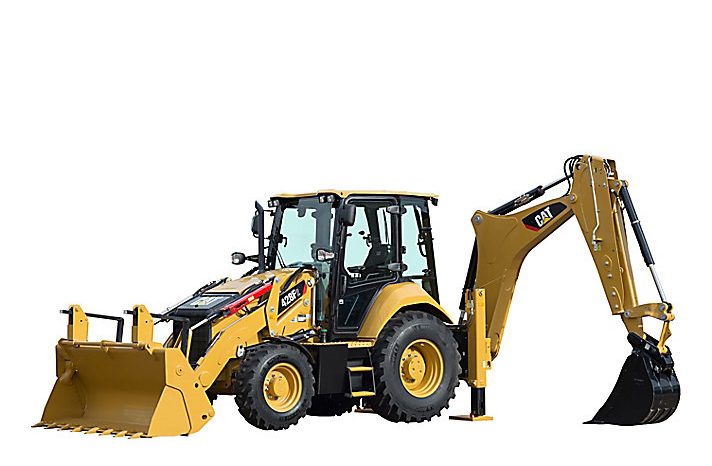

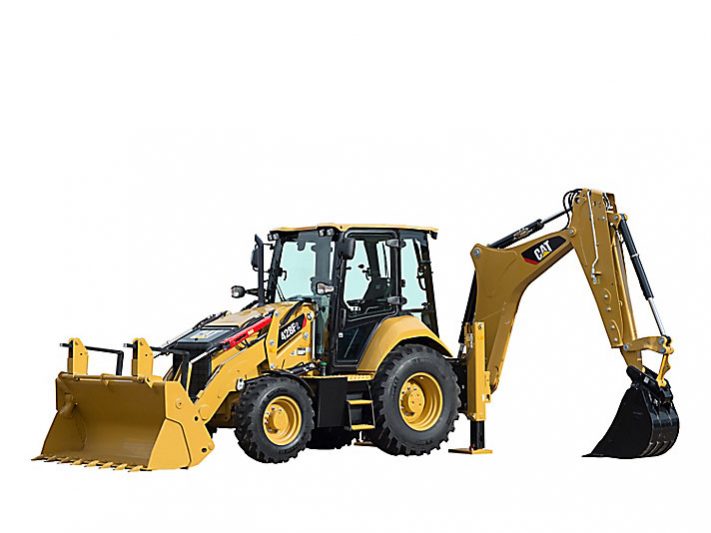

428F2 Backhoe Loaders
CAT Backhoe Loaders 2017 Machinrey New
Engine
| Base Power (1st Gear) - Net | 108.0 kW |
| Engine Model | Cat C7 ACERT |
| Displacement | 7.2 l |
| Bore | 105.0 mm |
| Stroke | 127.0 mm |
| Maximum Torque | 881.0 N·m |
| Speed at Rated Power | 2000.0 r/min |
Frame
| Circle - Outer Diameter | 1530.0 mm |
| Front Axle - Total Oscillation per Side | 32° |
| Front Axle - Wheel Lean - Left/Right | 18° |
Weights
| Gross Vehicle Weight - Typically Equipped | 16791.0 kg |
Engine
| Power – Net | 64.9 kW |
Engine – Stage II Standard Offering*
| Dimensions – Bore | 105.0 mm |
| Dimensions – Displacement | 4.4 l |
| Dimensions – Stroke | 127.0 mm |
| Engine | 3054C 68.5 kW Mechanical Turbo |
| Maximum Torque | 384.0 N·m |
| Net Power – 2,200 rpm – 80/1269/EEC | 64.9 kW |
| Net Power – 2,200 rpm – ISO 9249 | 64.9 kW |
| Note | *Meets Stage II/Tier 2 equivalent emission standards. |
| Rated Power (Standard) – 2,200 rpm – Gross – ISO 14396 | 68.5 kW |
| Torque Rise – 1,400 rpm – Net | 38% |
Weights
| Operating Weight – Nominal | 8425.0 kg |
| Operating Weight – Maximum | 11000.0 kg |
| 4.3 m Extendible Stick – Excluding Front Counterweight | 203.0 kg |
| Air Conditioning | 42.0 kg |
| Auto-Shift Transmission | 55.0 kg |
| Cab – ROPS/FOPS | 129.0 kg |
| MP Bucket (1.00 m3/1.30 yd3) – With Fold-Over Forks | 871.0 kg |
| MP Bucket (1.00 m3/1.30 yd3) – Without Fold-Over Forks | 611.0 kg |
| Operating Weight | 8425.0 kg |
| Operating Weight – Estimated – C4.4 | 8425.0 kg |
| Operating Weight – ROPS Capacity – Maximum | 11000.0 kg |
| Ride Control | 11.0 kg |
| Counterweights – Base | 115.0 kg |
| Counterweights – Maximum | 460.0 kg |
| Counterweights – Medium | 240.0 kg |
| Minimum Counterweight Recommendations – Extendible Stick: Loader Bucket – GP | 460.0 kg |
| Minimum Counterweight Recommendations – Extendible Stick: Loader Bucket – MP | 0.0 kg |
| Minimum Counterweight Recommendations – Standard Stick: Loader Bucket – GP | 115.0 kg |
| Minimum Counterweight Recommendations – Standard Stick: Loader Bucket – MP | 0.0 kg |
Hydraulic System
| Maximum Pump Capacity | 160.0 l/min |
| System Pressure – Backhoe | 250.0 bar |
| System Pressure – Loader | 250.0 bar |
| Type | Closed Center |
| Pump Type | Variable Flow, Axial Piston |
Steering
| AWD Cylinder, One (1) Double Acting – Bore | 65.0 mm |
| AWD Cylinder, One (1) Double Acting – Rod Diameter | 36.0 mm |
| AWD Cylinder, One (1) Double Acting – Stroke | 120.0 mm |
| Turning Circle – AWD (inner wheel not braked) – Outside Front Wheels | 8.2 m |
| Turning Circle – AWD (inner wheel not braked) – Outside Widest Loader Bucket | 11.0 m |
| AWD Cylinder, One (1) Double Acting – Axle Oscillation | 11.0 mm |
| Type | Front Wheel |
| Power Steering | Hydrostatic |
Service Refill Capacities
| Cooling System – A/C | 22.5 l |
| Engine Oil – With Filter | 8.8 l |
| Front Axle (AWD) | 11.0 l |
| Front Axle (AWD) – Planetaries | 0.7 l |
| Fuel Tank | 160.0 l |
| Hydraulic System | 95.0 l |
| Hydraulic Tank | 40.0 l |
| Rear Axle | 16.5 l |
| Rear Axle – Planetaries | 1.7 l |
| Transmission – Power Shuttle – AWD | 15.0 l |
| Transmission – Auto-Shift – AWD | 19.0 l |
Transmission – Power Shuttle
| Forward – 1st | 5.6 km/h |
| Forward – 2nd | 9.3 km/h |
| Forward – 3rd | 21.0 km/h |
| Forward – 4th | 40.0 km/h |
| Reverse – 1st | 5.6 km/h |
| Reverse – 2nd | 9.3 km/h |
| Reverse – 3rd | 21.0 km/h |
| Reverse – 4th | 40.0 km/h |
| Note | Travel speeds of two wheel drive backhoe loader at full throttle, when equipped with 16.9×28 rear tires. |
Transmission – Auto-Shift
| Forward – 1st | 6.0 km/h |
| Forward – 2nd | 9.6 km/h |
| Forward – 3rd | 12.5 km/h |
| Forward – 4th | 19.6 km/h |
| Forward – 5th | 26.5 km/h |
| Forward – 6th | 40.0 km/h |
| Reverse – 1st | 6.0 km/h |
| Reverse – 2nd | 12.6 km/h |
| Note | Travel speeds of two wheel drive backhoe loader at full throttle, when equipped with 16.9×28 rear tires. |
| Reverse – 3rd | 27.4 km/h |
Cat® 3054C DIT Diesel Engine – Optional
| Gross Power – ISO 14396 | 74.4 kW |
| Net Power – ISO 9249 | 70.9 kW |
Cat® 3054C DIT Diesel Engine – Standard
| Gross Power – ISO 14396 | 68.4 kW |
| Net Power – ISO 9249 | 64.9 kW |
Axles – All Wheel Drive (AWD)
| Features (1) | Heavy-duty rear axle with self adjusting inboard brakes, differential lock and final drives. |
| Features (2) | AWD is engaged by front console panel switch or by brake pedal during all-wheel-braking operation. |
| Features (3) | AWD can be engaged on the move, under load, in any gear, forward or reverse. |
| Features (4) | AWD has outer final drives for easy maintenance. |
| Features (5) | AWD front axle is pendulum mounted and permanently sealed and lubricated, requiring no daily maintenance. |
| Features (6) | AWD also features double-acting steering cylinder with 52° steering angle for increased maneuverability. |
Brakes
| Type | Fully enclosed boosted, hydraulic, multiple discs. |
| Features (1) | Inboard oil-immersed, hydraulically actuated multiple Kevlar discs on final drive input shaft. |
| Features (2) | Completely enclosed and sealed. |
| Features (3) | Self-adjusting. |
| Features (4) | Dual foot-operated boosted brake pedals can be interlocked for roading. |
| Features (5) | Parking/secondary brakes are independent of the service brake system. |
| Features (6) | Parking brake is mechanically applied through a hand lever located in the right side console. |
| Features (7) | Meets ISO 3450:1996 requirements. |
Axle Ratings
| Front Axle (AWD) – Dynamic | 9186.0 kg |
| Front Axle (AWD) – Static | 22964.0 kg |
| Rear Axle – Dynamic | 9186.0 kg |
| Rear Axle – Static | 22964.0 kg |
Backhoe Digging Depth
| Digging Depth – SAE Maximum – E-Stick Extended – 4.26 m | 5274.0 mm |
| Digging Depth – SAE Maximum – E-Stick Retracted – 4.26 m | 4281.0 mm |
| Digging Depth – SAE Maximum – Standard Stick | 4278.0 mm |
Cat® C4.4 Engine – Optional
| Gross Power – ISO 14396 (1) | 70.0 kW |
| Gross Power – ISO 14396 (2) | 74.7 kW |
| Net Power – ISO 9249 (1) | 65.6 kW |
| Net Power – ISO 9249 (2) | 70.1 kW |
Engine – Stage II Optional Offering*
| Dimensions – Bore | 105.0 mm |
| Dimensions – Displacement | 4.4 l |
| Dimensions – Stroke | 127.0 mm |
| Engine | 3054C 74.5 kW Mechanical Turbo |
| Maximum Torque | 397.0 N·m |
| Net Power – 2,200 rpm – 80/1269/EEC | 70.9 kW |
| Net Power – 2,200 rpm – ISO 9249 | 70.9 kW |
| Note | *Meets Stage II/Tier 2 equivalent emission standards. |
| Rated Power (Standard) – 2,200 rpm – Gross – ISO 14396 | 74.5 kW |
| Torque Rise – 1,400 rpm – Net | 31% |
Engine – Stage IIIA Optional Offering** (1)
| Dimensions – Bore | 105.0 mm |
| Dimensions – Displacement | 4.4 l |
| Dimensions – Stroke | 127.0 mm |
| Engine | C4.4 70 kW Mechanical Turbo Intercooled |
| Maximum Torque | 383.0 N·m |
| Net Power – 2,200 rpm – 80/1269/EEC | 65.2 kW |
| Net Power – 2,200 rpm – ISO 9249 | 65.2 kW |
| Note | **Meets Stage IIIA/Tier 3 equivalent emission standards. |
| Rated Power (Standard) – 2,200 rpm – Gross – ISO 14396 | 70.0 kW |
| Torque Rise – 1,400 rpm – Net | 37% |
Engine – Stage IIIA Optional Offering** (2)
| Dimensions – Bore | 105.0 mm |
| Dimensions – Displacement | 4.4 l |
| Dimensions – Stroke | 127.0 mm |
| Engine | C4.4 74.5 kW Mechanical Turbo Intercooled |
| Maximum Torque | 398.0 N·m |
| Net Power – 2,200 rpm – 80/1269/EEC | 70.1 kW |
| Net Power – 2,200 rpm – ISO 9249 | 70.1 kW |
| Note | **Meets Stage IIIA/Tier 3 equivalent emission standards. |
| Rated Power (Standard) – 2,200 rpm – Gross – ISO 14396 | 74.5 kW |
| Torque Rise – 1,400 rpm – Net | 32% |
Noise Level*
| Inside Cab | 74.0 dB(A) |
| Note | *Stage IIIA with EN474 Prep. Pack. |
| Outside Cab | 101.0 dB(A) |
Transmission – Auto-Shift (Optional)
| Forward – 1st | 6.0 km/h |
| Forward – 2nd | 9.6 km/h |
| Forward – 3rd | 12.5 km/h |
| Forward – 4th | 19.6 km/h |
| Forward – 5th | 25.5 km/h |
| Forward – 6th | 40.0 km/h |
| Note | Travel speeds of two wheel drive backhoe loader at full throttle, when equipped with 16.9×28 rear tires. |
| Reverse – 1st | 6.0 km/h |
| Reverse – 2nd | 12.6 km/h |
| Reverse – 3rd | 27.4 km/h |
